Engineered HVAC Systems for
Performance & Compliance.
Our HVAC is a system that controls temperature, humidity, airflow, and air quality within a facility. It provides filtered air, maintains a comfortable environment, and supports infection control and regulatory compliance in hospitals, cleanrooms, laboratories, and industrial facilities.
Our HVAC systems are designed in accordance with ASHRAE, SMACNA, ISO, AHRI, NFPA, AMCA & GMP guidelines and standards to ensure optimal temperature control, humidity regulation, ventilation, indoor air quality, energy efficiency, and compliance with healthcare and cleanroom requirements.
Technical Details
The core air handling and filtration systems at the heart of every HVAC installation we design.

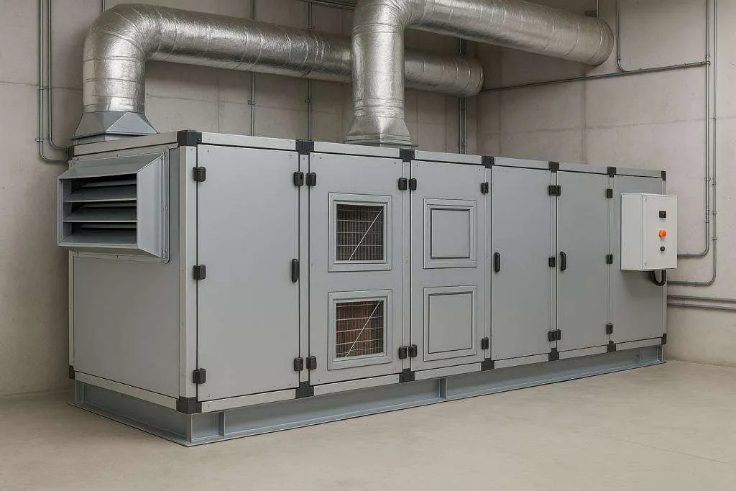

Air Handling Unit (AHU)
A key component of HVAC systems that conditions, filters, and circulates air to maintain optimal indoor air quality, temperature, humidity, and ventilation, built with high-quality filters, cooling/heating coils, blowers, dampers, and insulated panels.
- PLC/BMS compatible controls
- Double-skin insulated panel construction
- Insulation: PUF/Rockwool, 25-50 mm thickness
- Humidification & dehumidification control options
- Airflow capacity: 500 to 1,00,000 CMH
- Pre, Fine & HEPA filter stages
- Centrifugal, Plug, or EC fan types
- Casing material: powder-coated GI, SS304/SS316, or Aluzinc
- Chilled water, DX, or VRF cooling coil
- Heating coil: electric, steam, or hot water
- Type: air handling units, ventilation & exhaust units, treated fresh air units, heat recovery AHUs

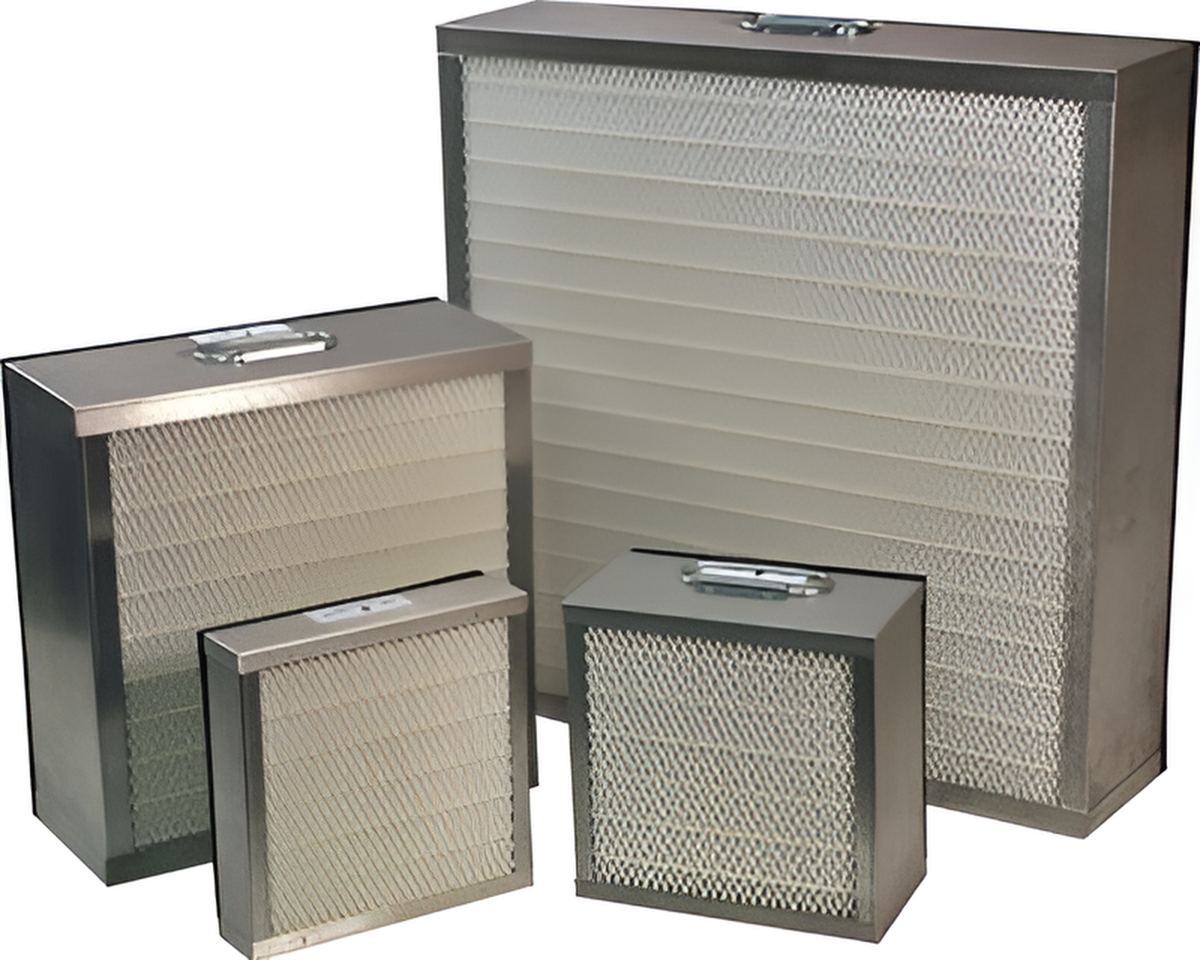

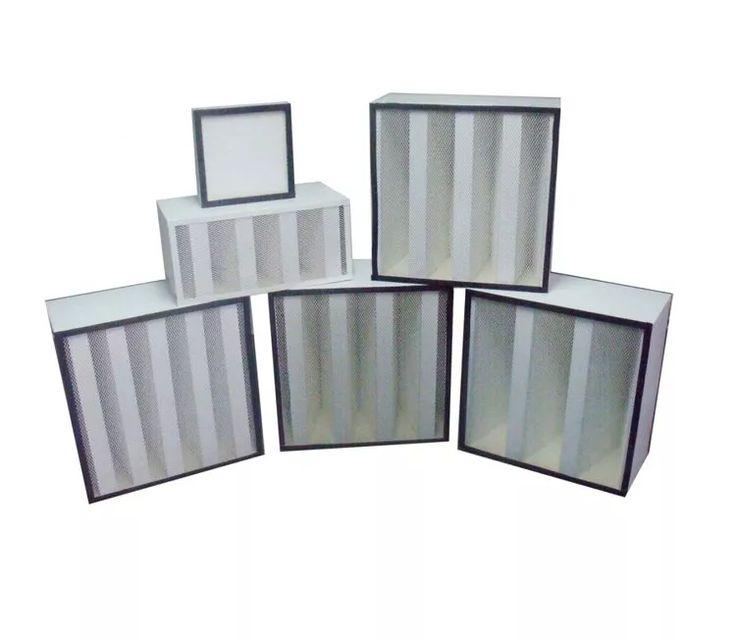

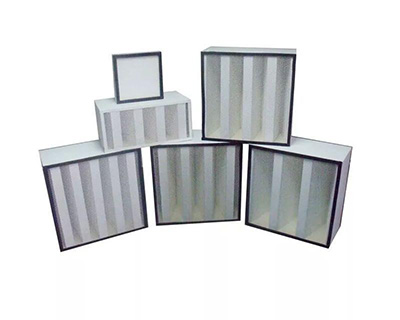

HEPA / ULPA Filtration Systems
Advanced air purification for critical environments requiring strict contamination control, effectively removing airborne particles, microorganisms, and contaminants. Our Bag-In Bag-Out (BIBO) system enables safe filter replacement without exposure to hazardous particles, featuring heavy-duty welded housing, negative pressure containment design, integrated access doors with secure locking mechanisms, and leak-tight sealing and gasket arrangements.
- Low-pressure-drop design for energy-efficient operation
- Leak-tested & certified filter modules
- Corrosion-resistant aluminium or galvanized steel frames
- Available in various sizes & airflow capacities
- HEPA: up to 99.97% efficiency at 0.3 microns
- ULPA: up to 99.9995% efficiency at 0.12 microns
- Compatible with AHUs, cleanrooms & terminal filtration units
- Designed as per ISO 14644, EN1822 & ASHRAE
HVAC Systems Range
The complete range of climate control, recovery, and distribution systems we engineer, supply, and install.

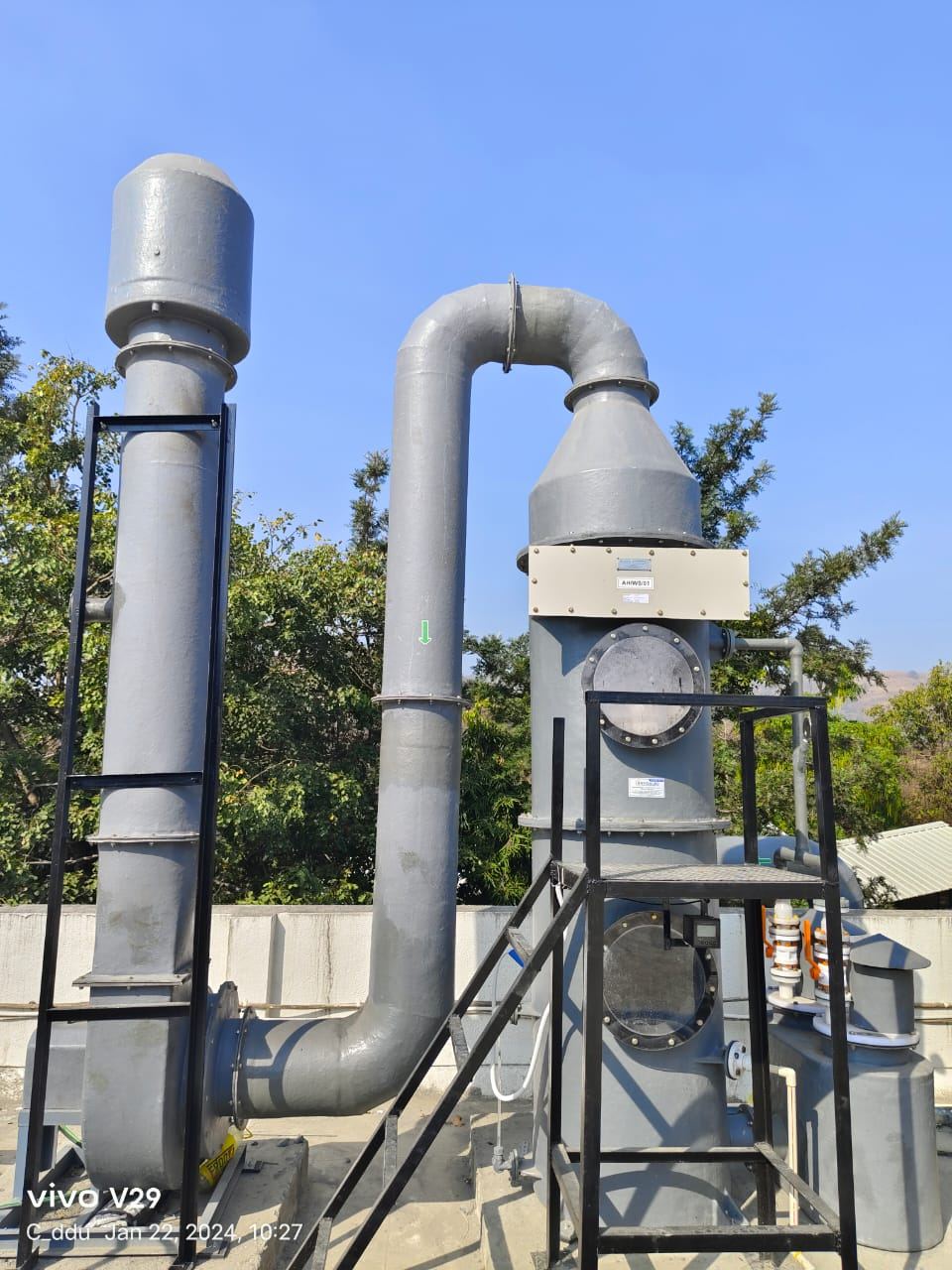

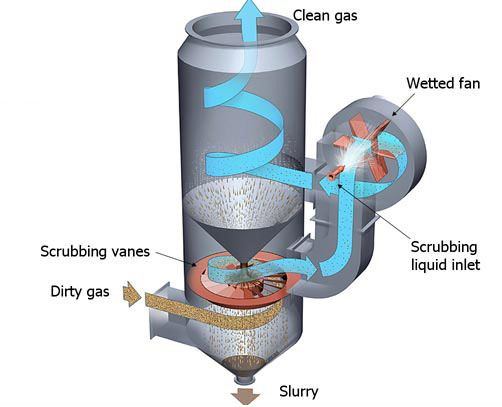

Scrubbers & Dust Collectors
Remove dust, fumes, smoke, and airborne contaminants to improve air quality, workplace safety, and regulatory compliance.

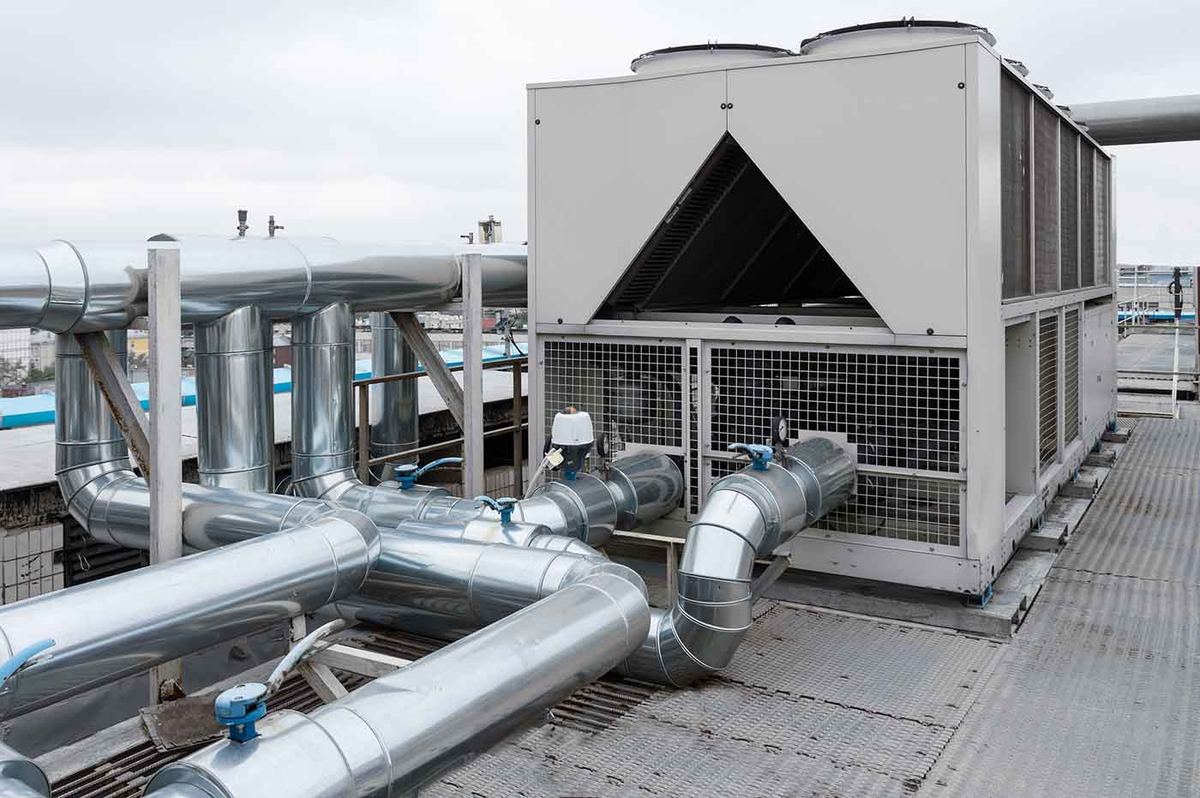

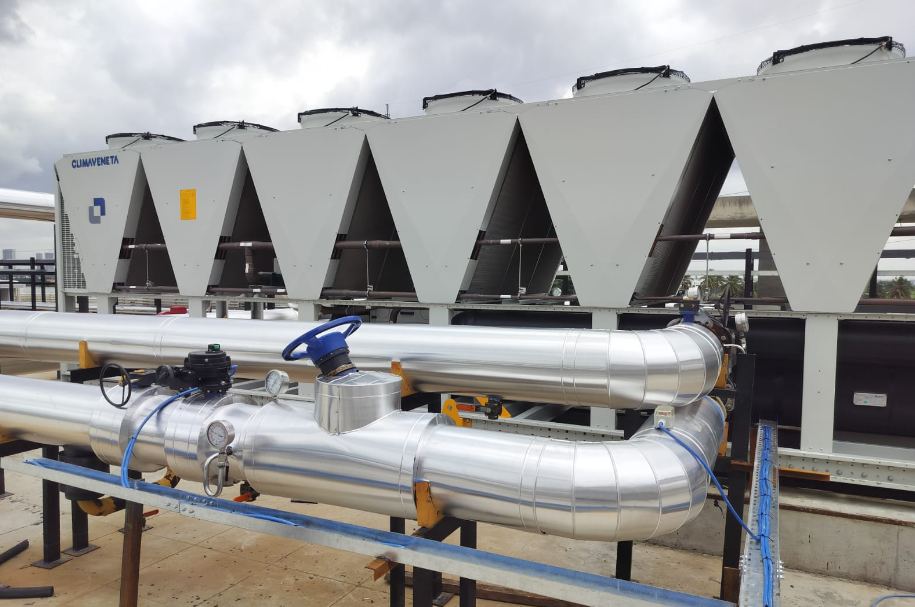

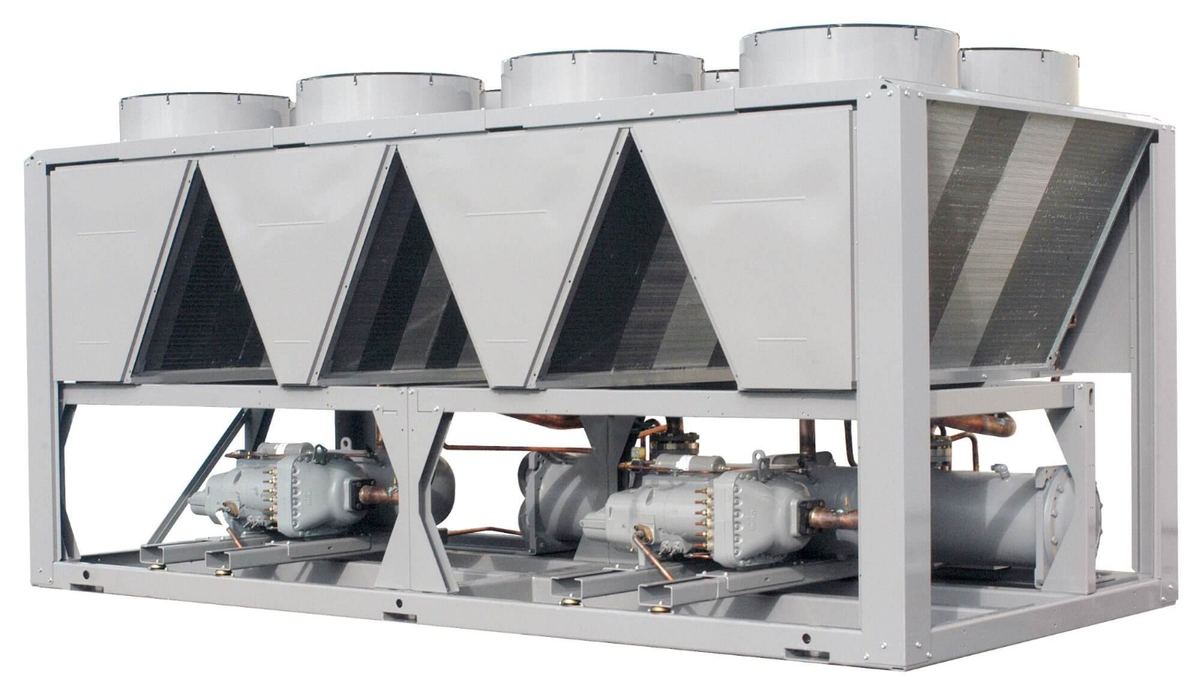

Chillers
Central cooling equipment that chills water for circulation through AHUs, FCUs, and process cooling loads across the facility.
- Capacity: 8 TR to 2,000+ TR
- Air-cooled and water-cooled configurations
- Scroll, screw, centrifugal, or reciprocating compressors
- R134a, R410A, or R407C refrigerants
- Chilled water temperature: 4°C to 15°C
- PLC/microprocessor/BMS-compatible controls

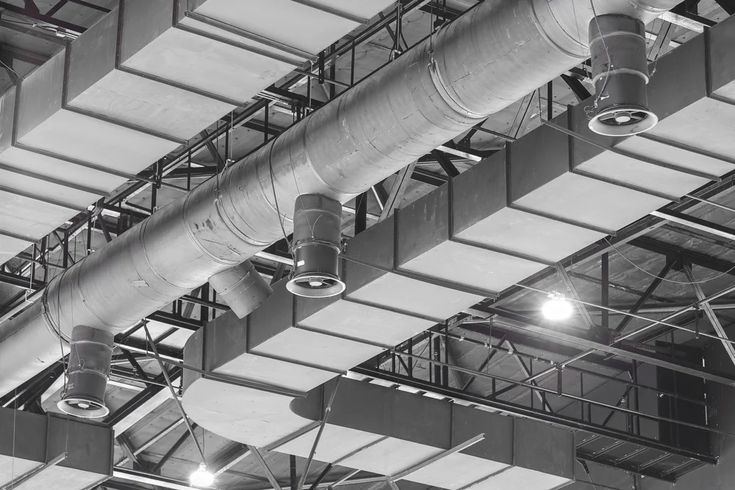

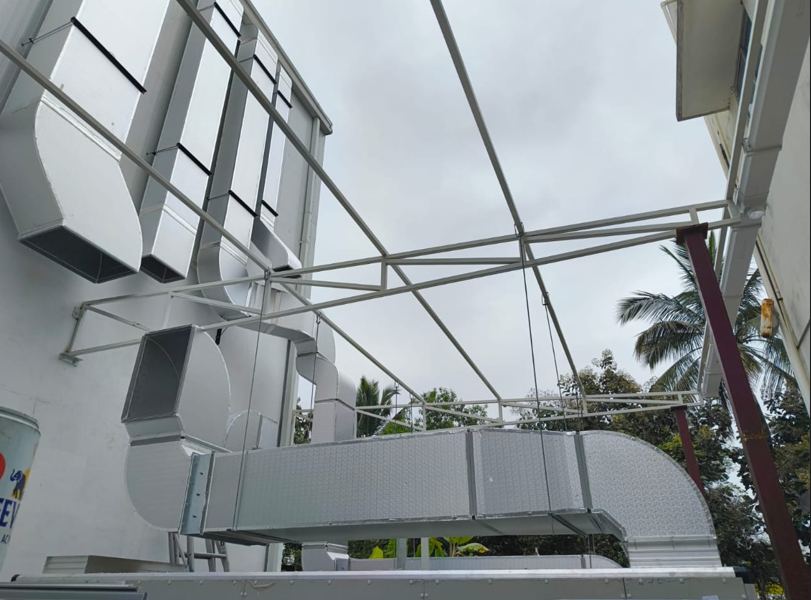

Ducting & Air Distribution
Distributes conditioned air throughout the facility while maintaining airflow balance, pressure control, and acoustic performance.
- Rectangular, oval, or round profiles
- Thickness: 0.64 mm to 1.5 mm
- Material: GI, Aluminium, PPFRP, or SS-304
- Designed as per SMACNA standards
- XLPE or Nitrile rubber insulation

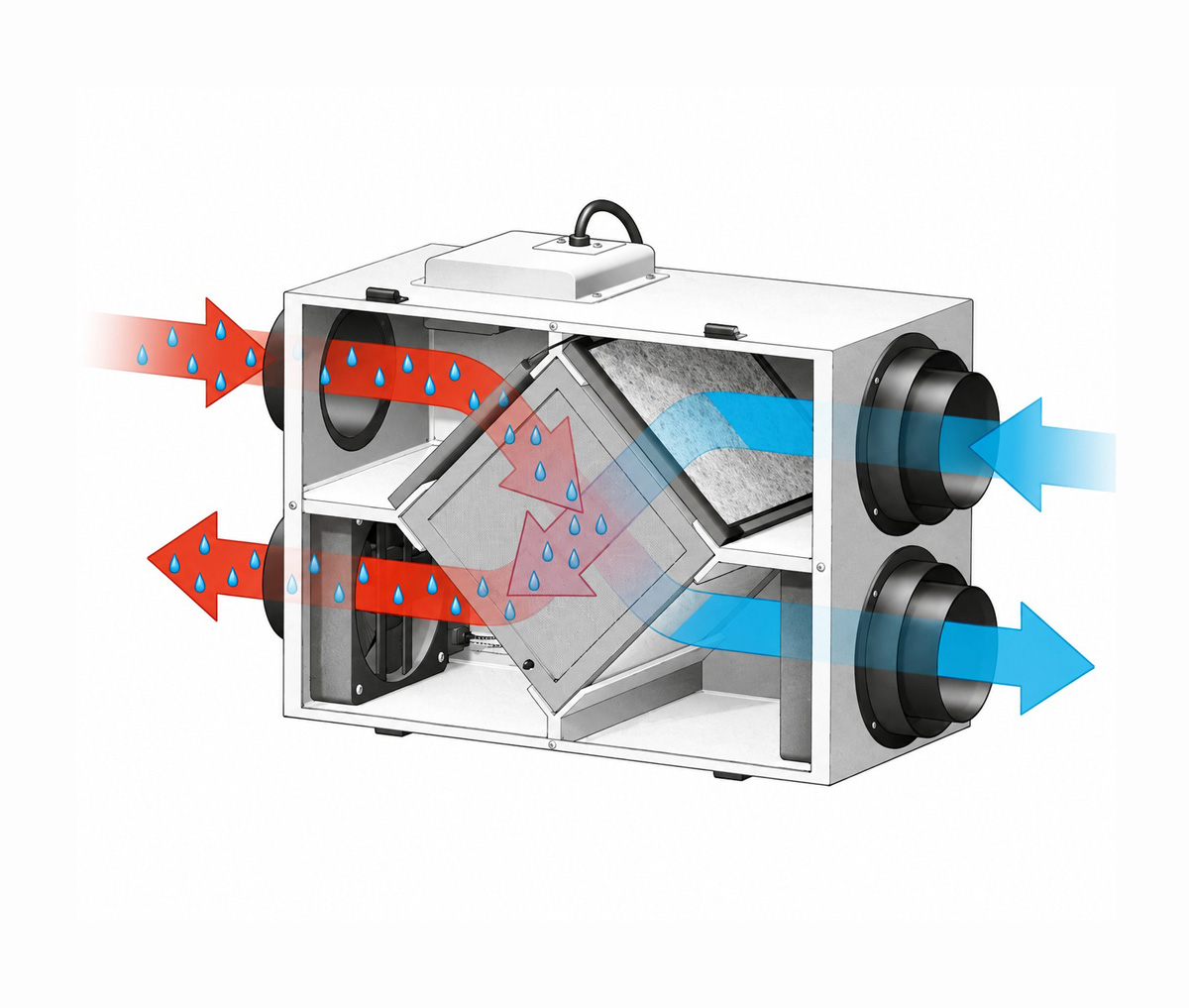

Heat Recovery Systems
Capture and reuse waste heat from exhaust air and industrial processes to precondition incoming fresh air, reducing energy consumption and operating costs.

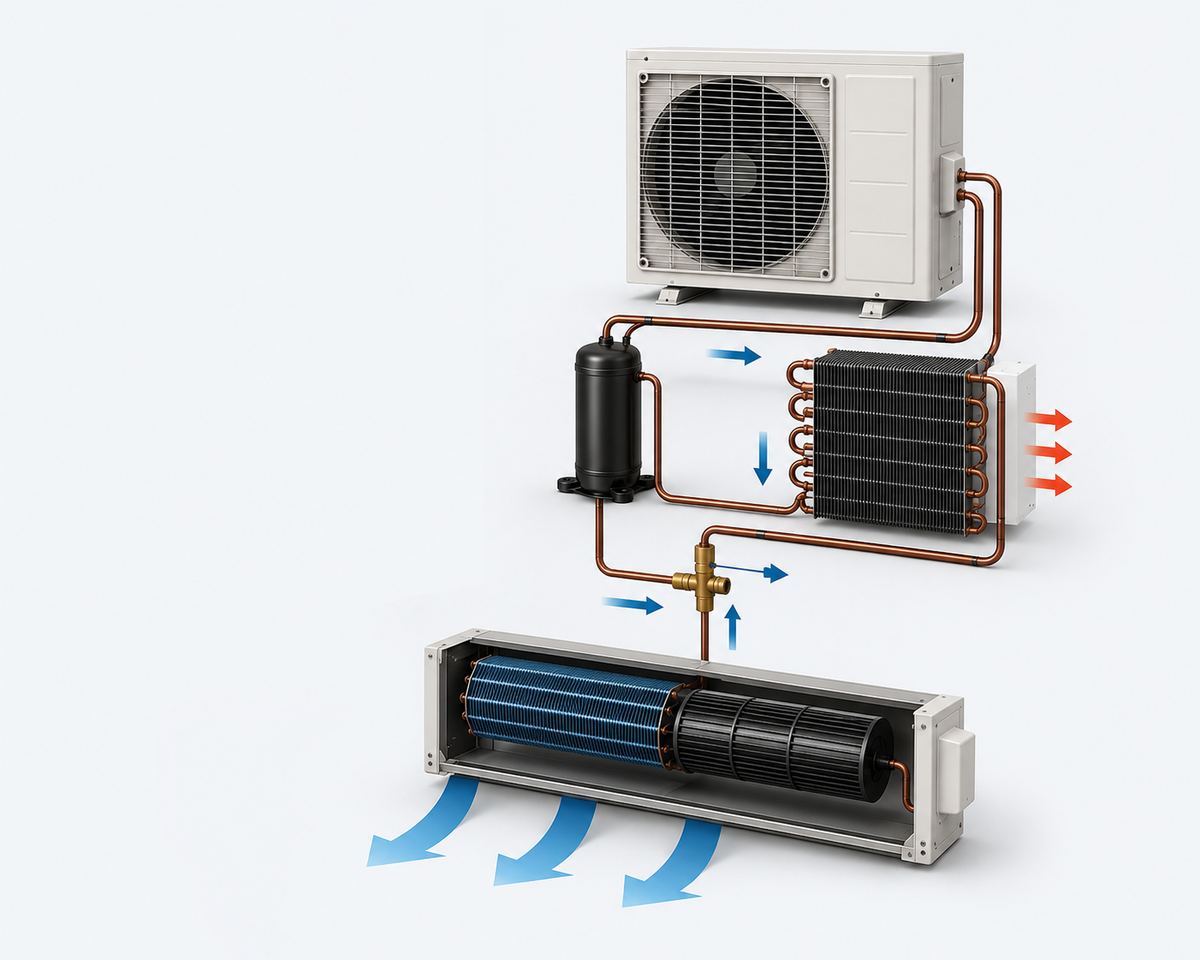

DX Systems
Direct expansion cooling systems for zone-level and dedicated space conditioning.
- Capacity: 1 to 16.5 TR
- R410A refrigerant
- Scroll, screw, or reciprocating compressors
- Copper-tube aluminium-fin cooling coil
- Hiwall, Cassette, Ductable, Floor Mounted, RTU & PAC units

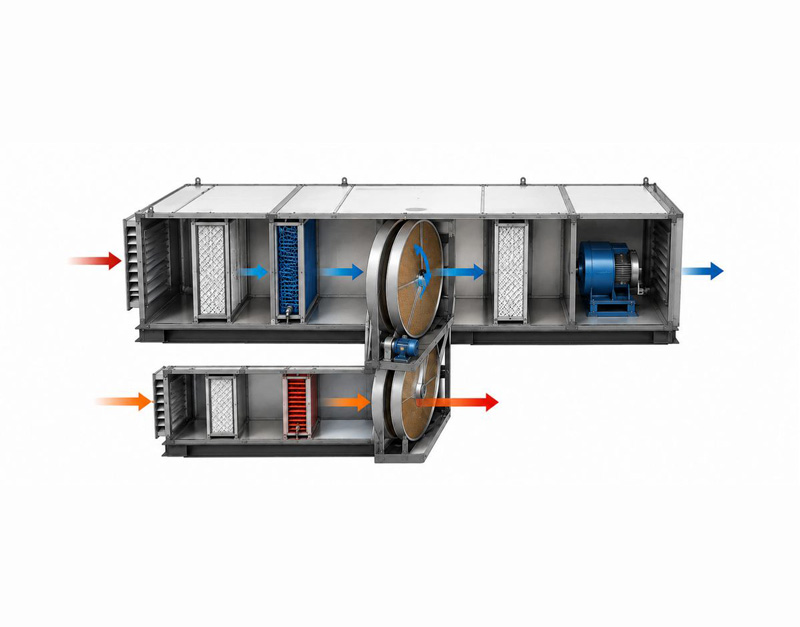

Dehumidification Systems
Maintain precise relative humidity for moisture-sensitive processes, storage, and cleanroom environments.
- RH as low as 2-5%
- Refrigerant, desiccant rotor, or steam-based technology
- Double-skin PUF/Rockwool insulated construction
- Pre, fine & optional HEPA filtration
- PLC/BMS controls with digital RH & temperature monitoring

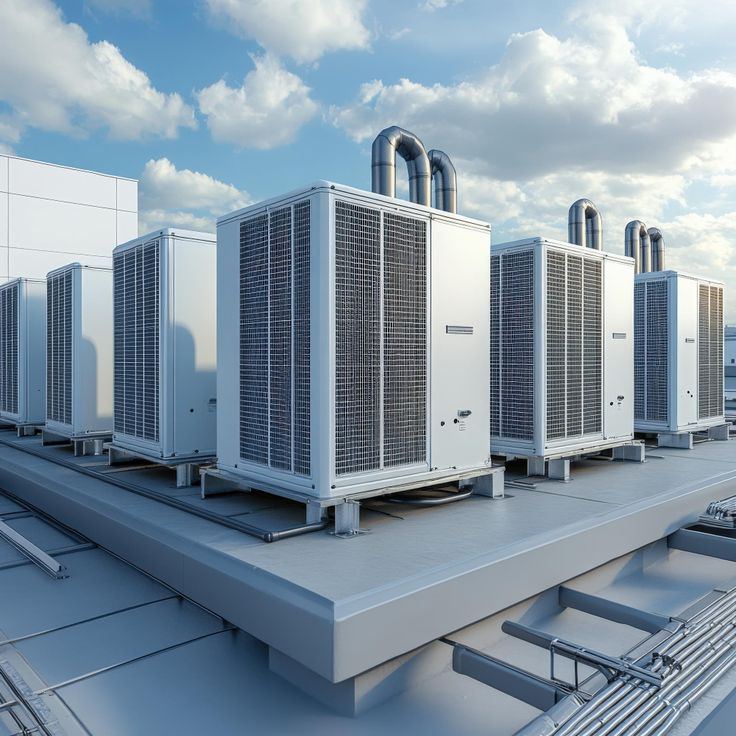

VRF Systems
Variable Refrigerant Flow systems for efficient, independently controlled multi-zone climate control.
- Capacity: 4 to 26 HP
- R410A refrigerant, inverter scroll compressor
- Heat pump & heat recovery options
- Individual zone control
- Cassette, Ducted, Wall Mounted, Floor Standing & Ceiling Suspended indoor units
- High COP & IPLV ratings, central/BMS-compatible controls

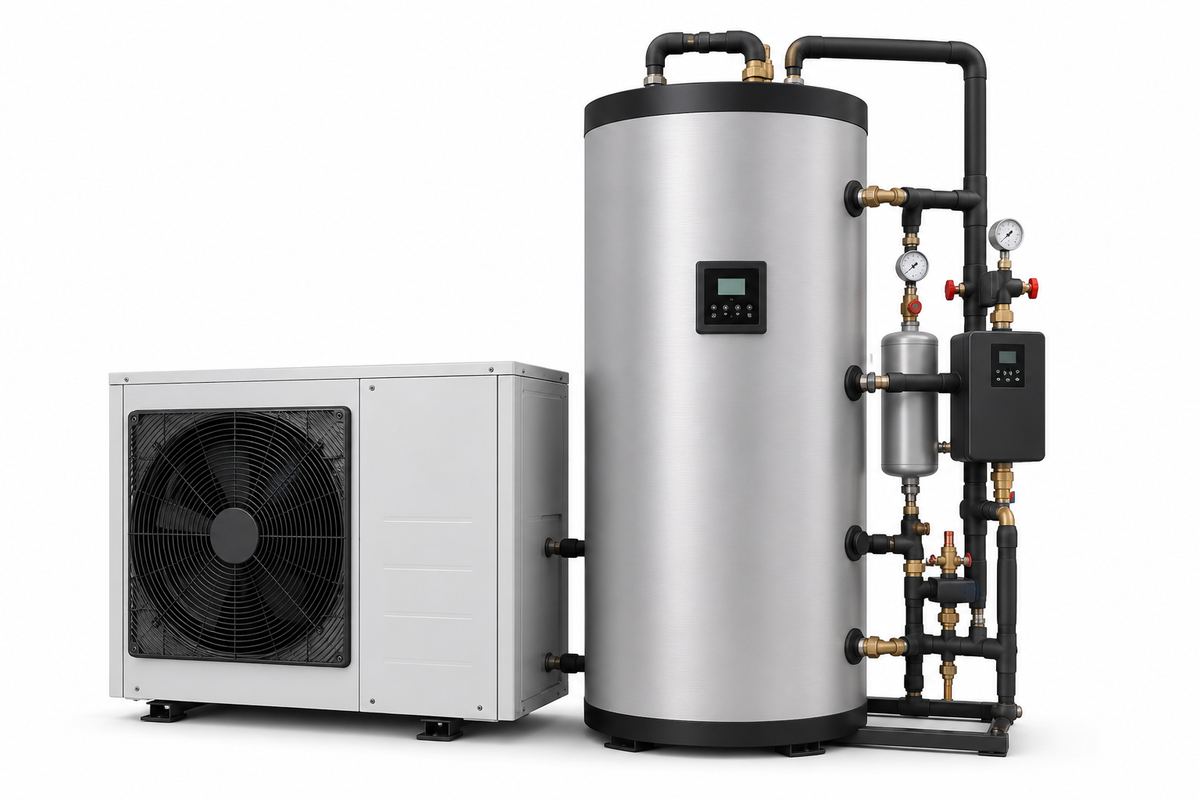

Heat Pump & Hot Water Systems
Efficient hot water generation for hospitals, hotels, and industrial process needs.
- Capacity: 3 kW to 500 kW+
- Hot water up to 85°C
- Air, water, or ground source options
- COP up to 4.5 or higher
- SS304/SS316 or glass-lined storage tanks
- Optional backup electric heater

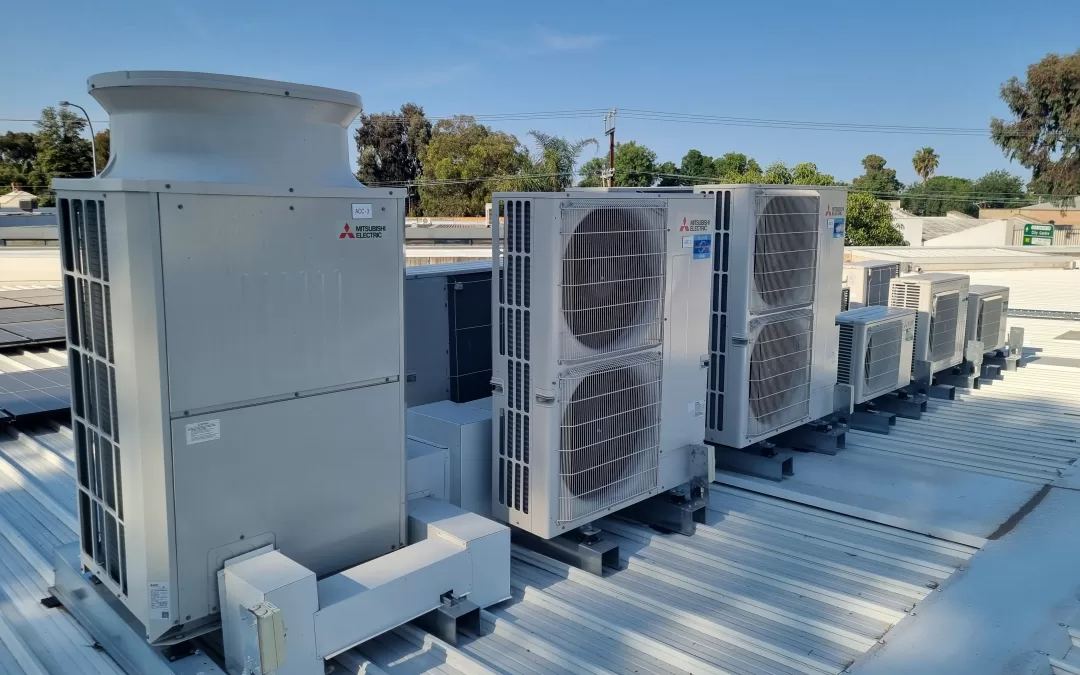

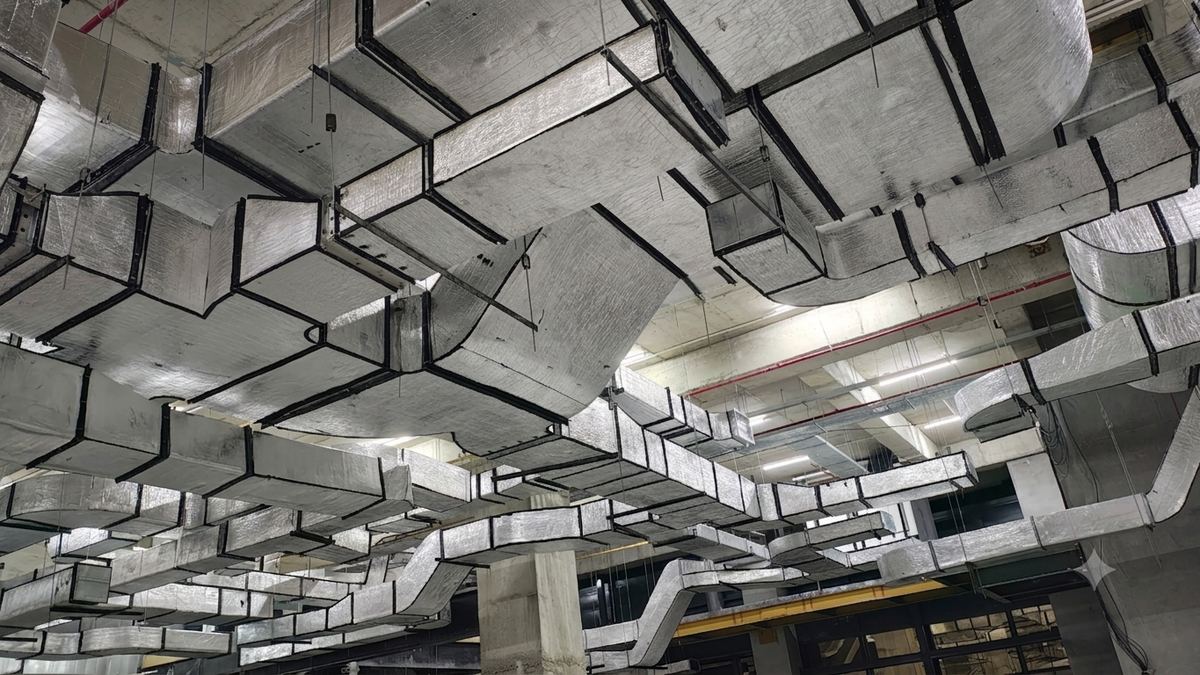

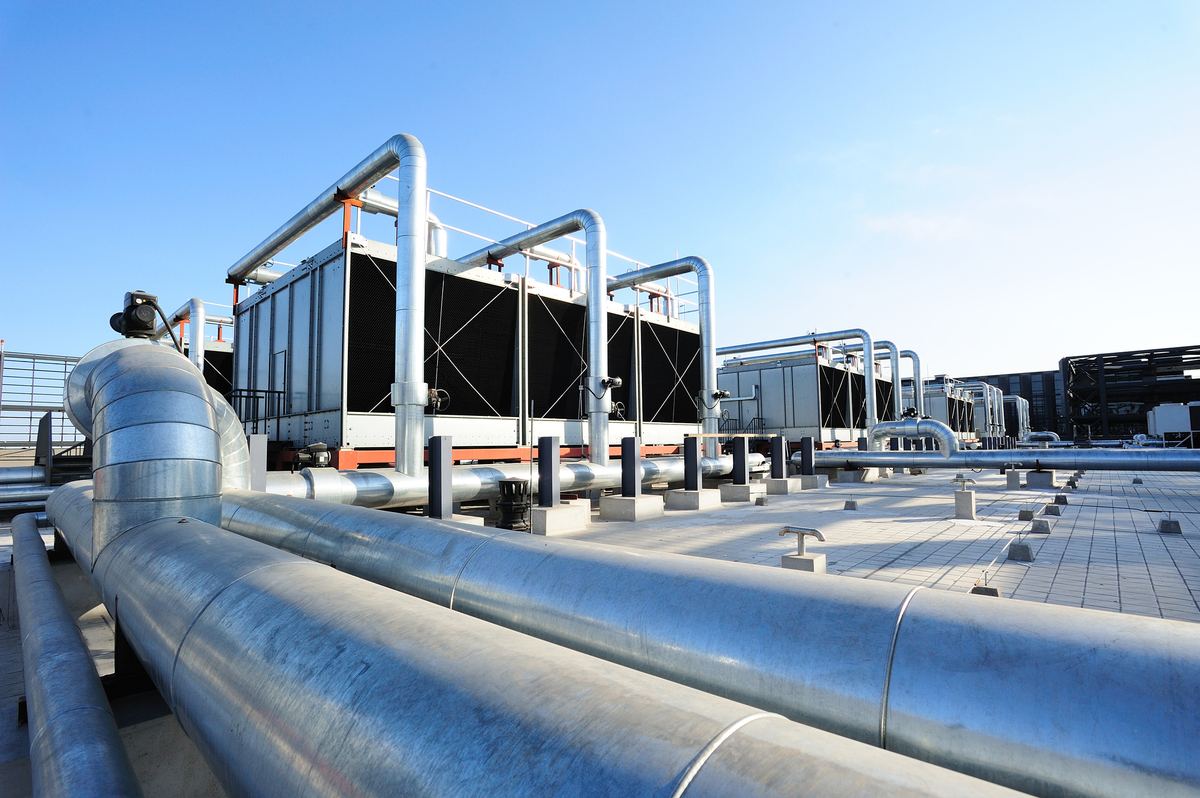

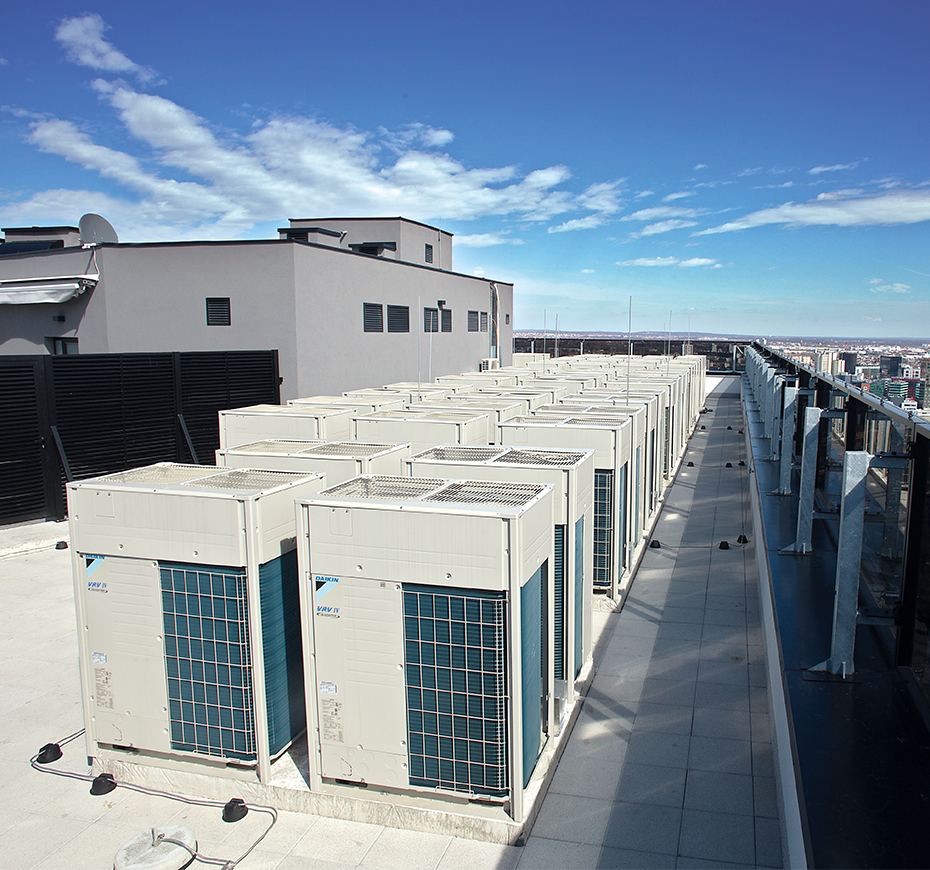

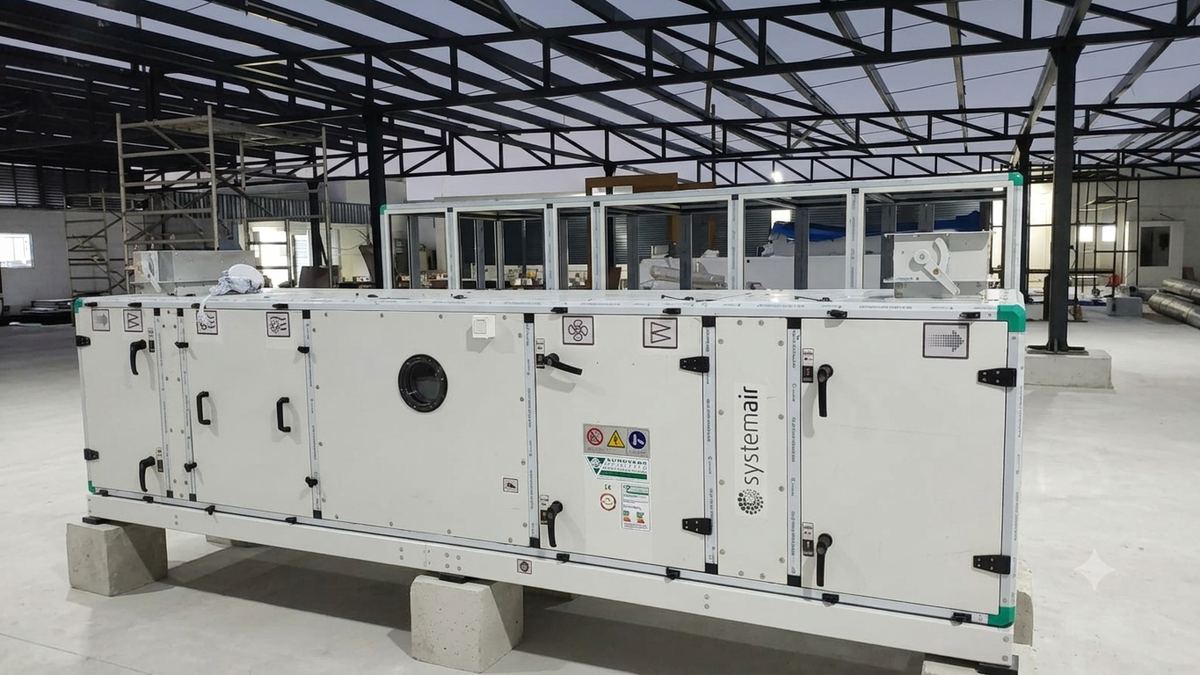

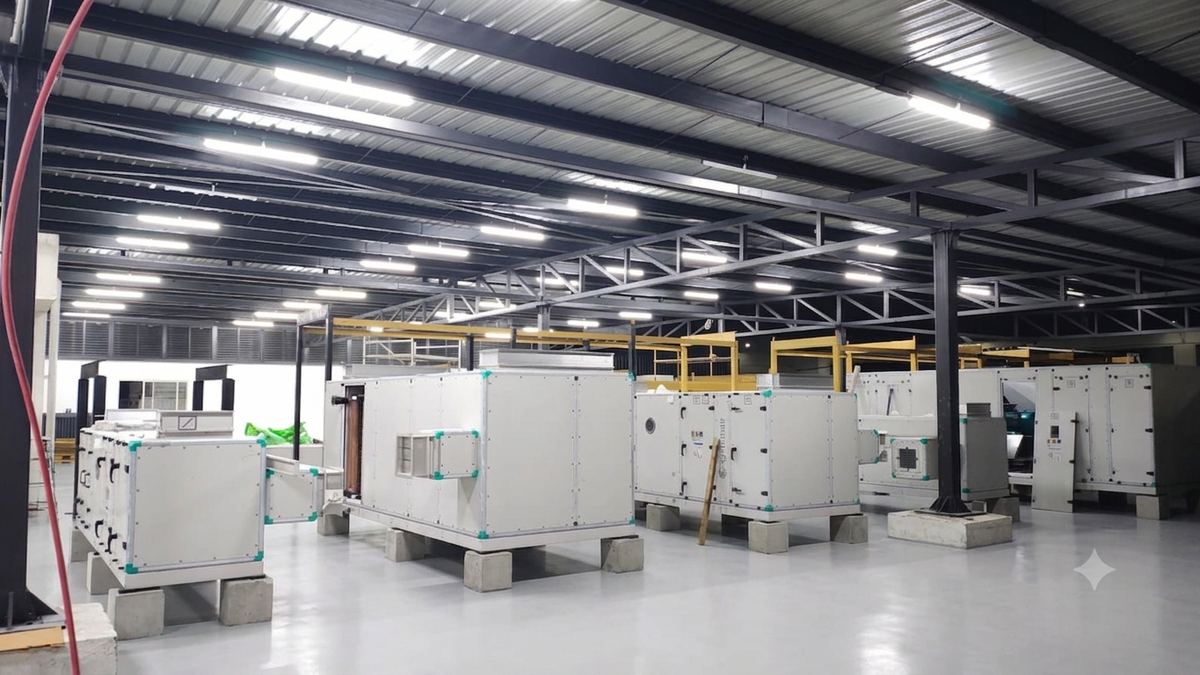

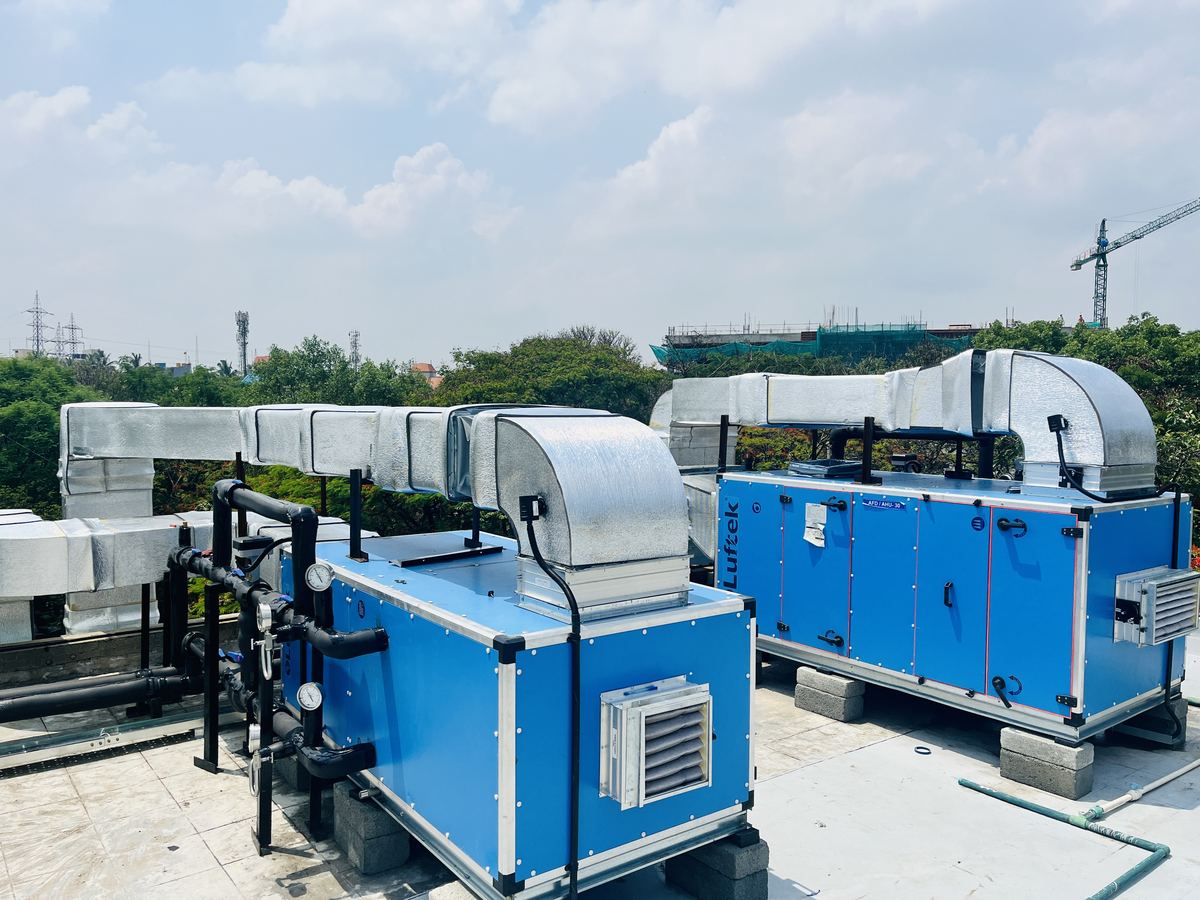

Gallery
A closer look at our HVAC systems and filtration installations in the field.
